      Install the Datacap payment processor on a new device (Datacap server setup)

      If you have a datacap server service, this is how you install a new client.

      Install device drivers

      Depending on the device you are using you need the right drivers. You can find the required drivers on the datacap website.

      In the example, we are using the "lane 3000" from Ingenico, so we need the Ingenico driver.

      Navigate through the installation procedure and make sure to force the COM port feature.

      And to uninstall the Microsoft drivers.

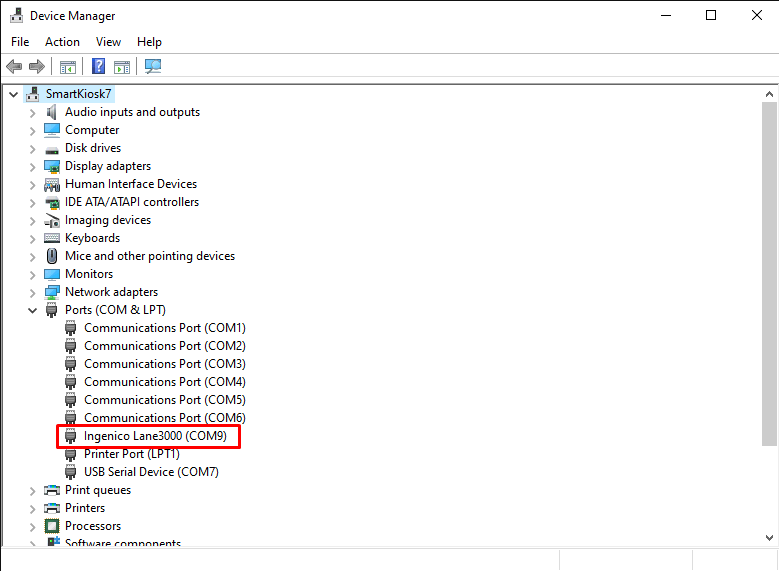

      Once the installation is completed you can verify it in the device manager.

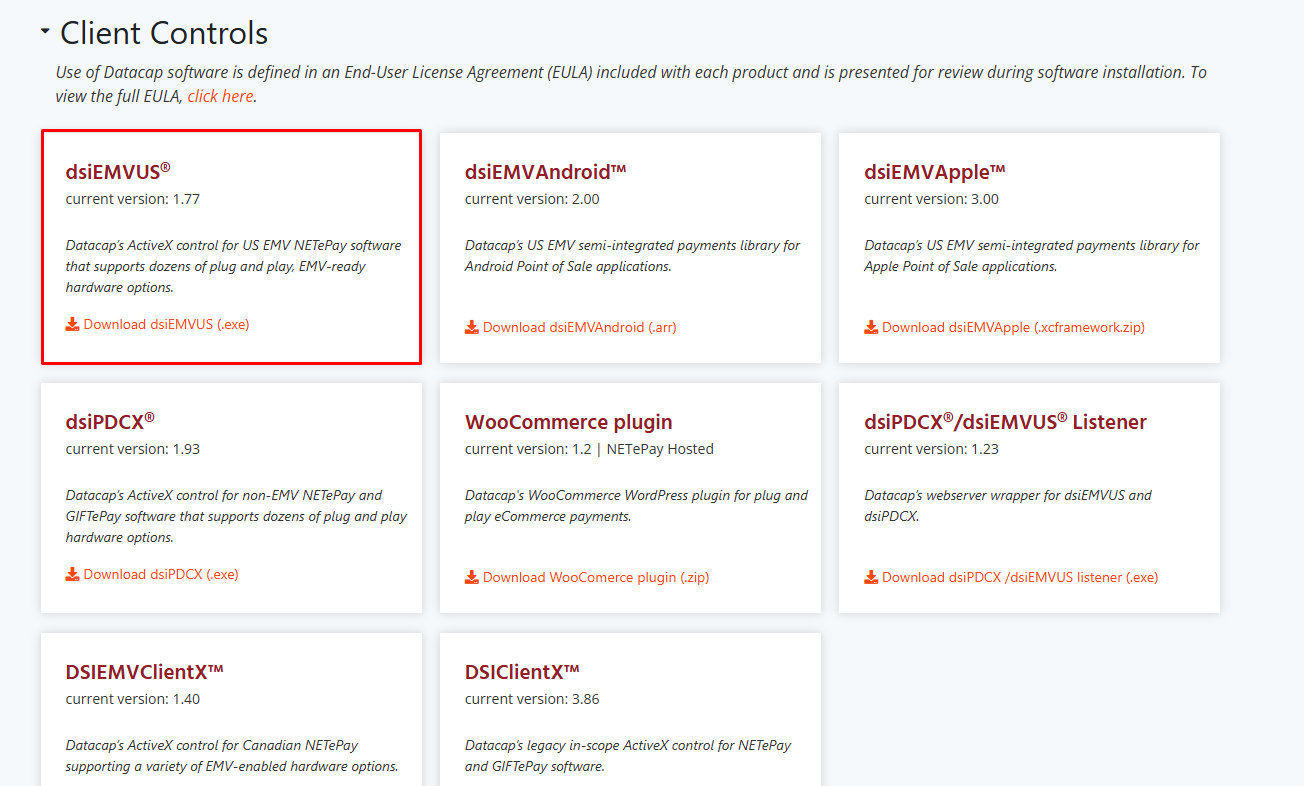

      Install the Datacap client.

      each client PC has to have a Datacap client running to enable communication with the datacap server.

      This software can also be downloaded on the datacap website.

      Depending on your platform and region, you will need a different client, but most commonly, it is the latest dsiEMVUS version.

      Accept the terms and conditions, and restart your device after installation.

      Configure the BMI Leisure software

      1. Open the BMI Leisure POS/Booking and log in with an administrator/ configurator account.
      2. Navigate to "Menu -> System -> Environment -> Devices"

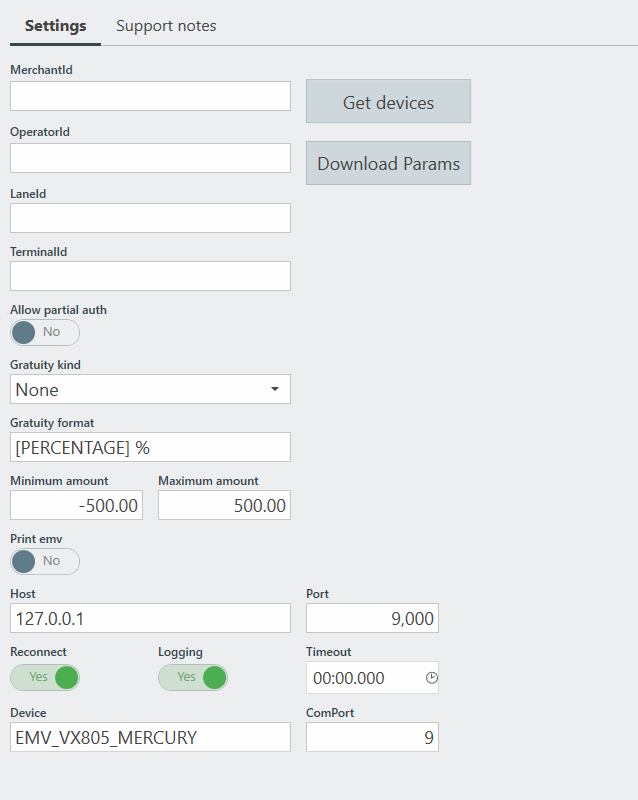

      3. Add a new "Credit card device Datacap dsiEMVUS" device to your station.
      4. Fill in all needed information.
        1. MerchantID should be on the var sheet that you receive from your processor.
        2. Operator ID is a unique name for your venue
        3. Lane ID is a numeric identifier allowing you to link it to a datacap lane / serial number.
        4. Terminal ID is a unique name for the station allowing you to differentiate received payments in your processor reports.
        5. Allow Partial authorization will allow you to pay the bill partially with the remaining funds on a gift or credit card. (TSYS requires active)
        6. Gratuity kinds:
          1. Gratuity: will just show gratuity on the ticket line and can then be collected reactively.
          2. Prompt: the device will prompt the customer to add gratuity on the CC terminal.
          3. Print blank line: if your device supports printing the receipt will have a placeholder added for guests to add gratuity.
          4. SuggestivePrompt: will prompt the guest for gratuity on the CC terminal while proposing preset values.
        7. Gratuity format: allows you to change the formatting so the screen will show the gratuity.
        8. Minimum amount: Minimum bill amount to process.
        9. Maximum amount: Maximum bill amount to process.
        10. Print EMV: will print an additional EMV ticket for each sale.
        11. Host: should be the IP for the Datacap server.
        12. Port: should be 9000 if not changed by your admin.
        13. Reconnect: allows automatic reconnecting (default on)
        14. Logging: will add the log lines to the BMI Logs.
        15. Time-out: allows you to change the timeout period for the device.
        16. Device: It needs to be the correct "Secure Device ID." You can find it by pressing the "Get Devices" Button.
        17. Com port: This needs to be the Com port you assigned to the device during the installation of the device drivers.

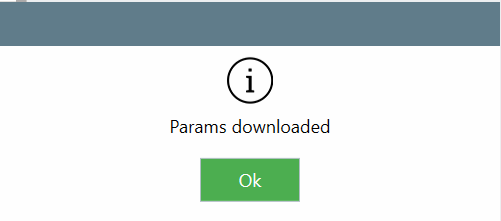

      5. Press the download parameters button and wait a few minutes until the device initialization is done, and the following pop-up appears.

          That's it, you are set!
